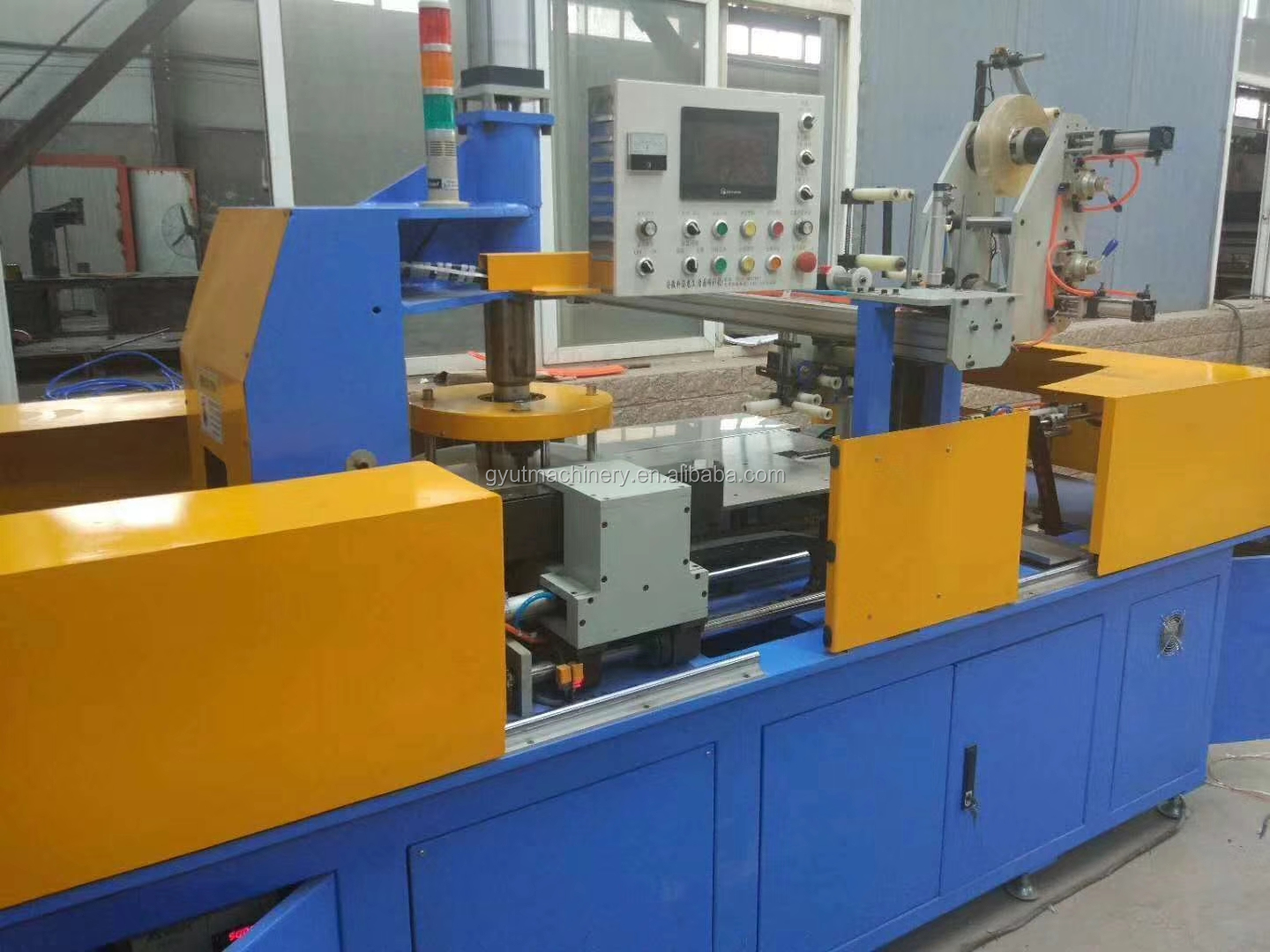

electric wire coiling machine, automatic wire and cable coiling machine
Coil Winding Machine Appllication:
Application :
It is used for the circling and bunding of 0.5-6 Sq MM single and the round sheath cable which the diameter is less than 10 mm ( 0.5-6 sq mm flexible cable )
Features:
1. Auto-cable coiling with continuous binding in one machine.
2. Non-stop production enhances the efficiency and quantity.
3. Saving your space for installation, and reducing the man labor expense for cable package.
4. More efficiency production line.
5.When there is a problem, the error will be detected automatically and the operator will be alerted by an alarm.
6.Save manpower, expand production capacity and improve industrial automation.
Equipment specification :
| Item | Equipment name and spec | Quantity |
| 1 | Pay-off rack | 1pcs |
| 2 | Pay-off tension and speed controller | 1pcs |
| 3 | Meter counter | 1pcs |
| 4 | Full automatic computer coiling machine | 1pcs |
THE OTHER KINDS WIRE CBALE COILING WRAPPING MACHINE
| wire /cable Coil winding machine |
| Wire/cable rage | Wire :10 mm2-75 mm2 Cable outside diameter:18mm |
| Pay-off reel diameter | 1400mm | Binding wire slot qty | 3 slot |
| Binding wire inner diameter | 200mm-300mm | Pay-off way | Automatic tension way |
| Binding wire outer diameter | 700mm | Main shaft rotary speed | 0-250r/min |
| Binding wire height | 100mm-180mm | Motor power | 4KW |
| Measure way | Data measure | Wire arrange way | Automatic arrange |
Specifications:
1) High speed wire coiling
2) Over 20years experience on Cable machine
3) Professional factory
4) cable making equipment
We could supply various coil winding machine.
Shipping and packing:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Pre-sale:
1. Suggest to client suitable raw material, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
